PA hotmelt low pressure molding
                                                                                        Customized
                                                                                        Left and right shift mode with automatic production

                                                                                        LPMS 700MD

                                                                                        Left and right shift mode with automatic production

                                                                                        Left and right shift table, an upper mold of with two lower mold, production process automation.

                                                                                        Equipment control system and pipeline control system good linkage to ensure the synchronization and consistency of product for each process.

                                                                                        Melt-on-demand tank, only 8 to 15 minutes to work after boot (based hot melt adhesive softening temperature in 100 ~ 160 ℃ measured).

                                                                                        Hot runner system, no outlet material, cost savings, while improving the appearance of the product surface.

                                                                                        Machines with self-diagnostic functions and various fault alarm.

                                                                                        Machine three-stage temperature control, melting tank, gun can be independently controlled.

                                                                                        Timed heating, over-temperature alarm and automatically stop heating.

                                                                                        Pick and place products and opening and closing mold not in the same place, but all operations by the robot, efficient and safe.

                                                                                        Automatic feeding systems, optional dryer machine, improve work efficiency.

                                                                                        Mold cooling system, shorten product cooling time.


                                                                                        Application

                                                                                             Automated production line design, improve product competitiveness.Our machines are engineered for low pressure molding applications. Using specialty resins to encapsulate delicate parts.

                                                                                          Applications including : automotive electronics, PCBA,coil, fiber-optic, LED lighting, wire, cable, etc.


                                                                                        Specification


                                                                                        Machine Size

                                                                                        1710 mm x 1242 mm x 2004 mm

                                                                                        67.32 in x 48.90 in x 78.90 in


                                                                                        Footprint

                                                                                        1710 mm x 1242 mm  |  67.32 in x 48.90 in


                                                                                        Working Station Height

                                                                                        N/A


                                                                                        Packing Size / Weight

                                                                                        1850mm x 1400mmx 2150mm

                                                                                        72.83 in x 55.12 in x 84.65 in


                                                                                        Melting Tank Model & Q'ty 1

                                                                                        Melt-On-Demand Tank 3 Liter


                                                                                        Auto Feeding System

                                                                                        Ultrasonic


                                                                                        Gun Model & Tip

                                                                                        Hot-Runner System


                                                                                        Heated Hose Model& Q'ty 2

                                                                                        LPMS-H12J x 1


                                                                                        Electricity

                                                                                        200-240VAC / 1 Phase / 50 Hz


                                                                                        Temperature Control Zones

                                                                                        7


                                                                                        Temperature Range

                                                                                        Ambient up to 446°F


                                                                                        Max .Power

                                                                                        6 Kw


                                                                                        Min. Air Pressure

                                                                                        0.5 MPa  |  73 Psi


                                                                                        Air Consumption

                                                                                        0.1m3 / min  |  3.5ft3 / min


                                                                                        Clamping

                                                                                        Air Cylinder


                                                                                        Clamping Force

                                                                                         Max.1.0 Ton


                                                                                        Clamping Stroke

                                                                                        75 mm  |  2.95 in


                                                                                        Control System

                                                                                        PLC+7 in HMI

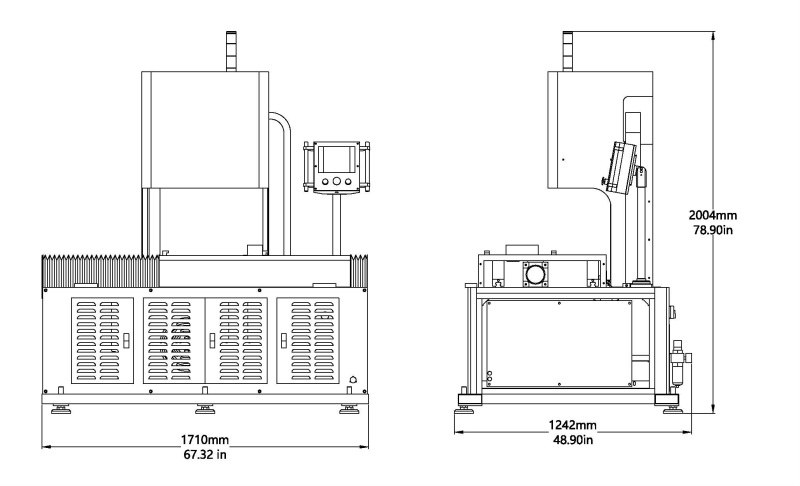

                                                                                        Dimension




                                                                                        Machine dimension
